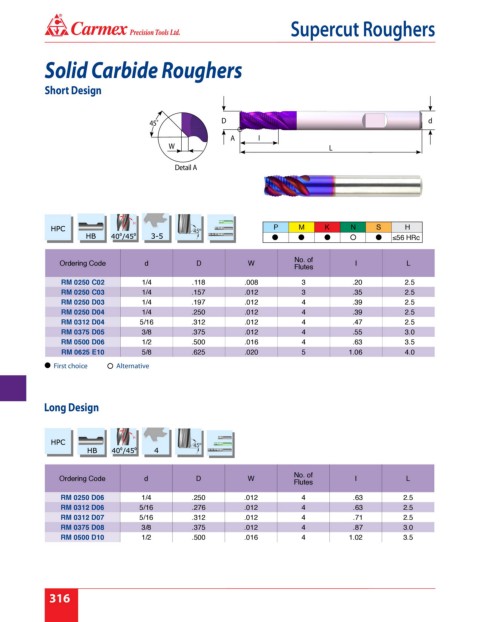

Page 322 - Carmex - Inch Catalog 2018-19 Rev. B

®
Supercut Roughers

Solid Carbide Roughers

Short Design

45˚ D d
A I
W L

Detail A

P M K N S H
≤56 HRc

No. of
Ordering Code d D W I L
Flutes
RM 0250 C02 1/4 .118 .008 3 .20 2.5
RM 0250 C03 1/4 .157 .012 3 .35 2.5
RM 0250 D03 1/4 .197 .012 4 .39 2.5
RM 0250 D04 1/4 .250 .012 4 .39 2.5
RM 0312 D04 5/16 .312 .012 4 .47 2.5
RM 0375 D05 3/8 .375 .012 4 .55 3.0
RM 0500 D06 1/2 .500 .016 4 .63 3.5
RM 0625 E10 5/8 .625 .020 5 1.06 4.0
First choice Alternative

Long Design

No. of
Ordering Code d D W I L
Flutes
RM 0250 D06 1/4 .250 .012 4 .63 2.5
RM 0312 D06 5/16 .276 .012 4 .63 2.5
RM 0312 D07 5/16 .312 .012 4 .71 2.5
RM 0375 D08 3/8 .375 .012 4 .87 3.0
RM 0500 D10 1/2 .500 .016 4 1.02 3.5
