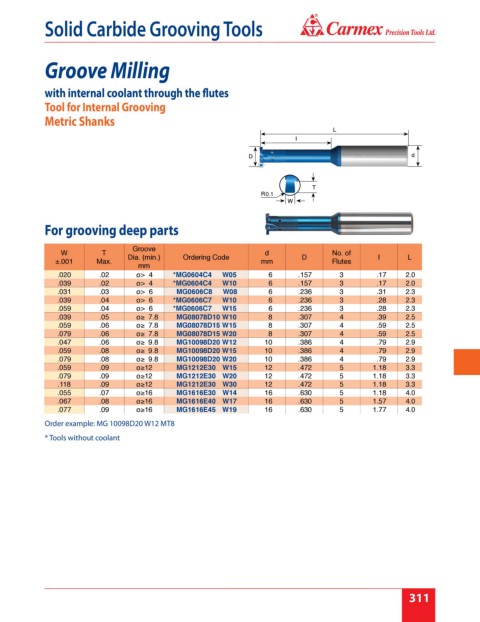

Solid Carbide Grooving Tools

Groove Milling

with internal coolant through the flutes
Tool for Internal Grooving
Metric Shanks

0.1

For grooving deep parts

Groove
W T Dia. (min.) Ordering Code d D No. of I L
±.001 Max. mm Flutes
mm
.020 .02 ø> 4 *MG0604C4 W05 6 .157 3 .17 2.0
.039 .02 ø> 4 *MG0604C4 W10 6 .157 3 .17 2.0
.031 .03 ø> 6 MG0606C8 W08 6 .236 3 .31 2.3
.039 .04 ø> 6 *MG0606C7 W10 6 .236 3 .28 2.3
.059 .04 ø> 6 *MG0606C7 W15 6 .236 3 .28 2.3
.039 .05 ø≥ 7.8 MG08078D10 W10 8 .307 4 .39 2.5
.059 .06 ø≥ 7.8 MG08078D15 W15 8 .307 4 .59 2.5
.079 .06 ø≥ 7.8 MG08078D15 W20 8 .307 4 .59 2.5
.047 .06 ø≥ 9.8 MG10098D20 W12 10 .386 4 .79 2.9
.059 .08 ø≥ 9.8 MG10098D20 W15 10 .386 4 .79 2.9
.079 .08 ø≥ 9.8 MG10098D20 W20 10 .386 4 .79 2.9
.059 .09 ø≥12 MG1212E30 W15 12 .472 5 1.18 3.3
.079 .09 ø≥12 MG1212E30 W20 12 .472 5 1.18 3.3
.118 .09 ø≥12 MG1212E30 W30 12 .472 5 1.18 3.3
.055 .07 ø≥16 MG1616E30 W14 16 .630 5 1.18 4.0
.067 .08 ø≥16 MG1616E40 W17 16 .630 5 1.57 4.0
.077 .09 ø≥16 MG1616E45 W19 16 .630 5 1.77 4.0
Order example: MG 10098D20 W12 MT8
* Tools without coolant
