Solid Carbide Grooving Tools

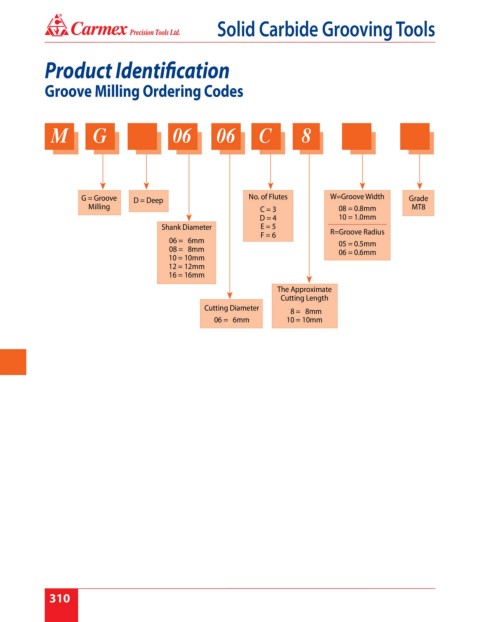

Product Identification
Groove Milling Ordering Codes
M G 06 06 C 8
G = Groove D = Deep No. of Flutes W=Groove Width Grade
Milling C = 3 08 = 0.8mm MT8
D = 4 10 = 1.0mm
Shank Diameter E = 5
F = 6 R=Groove Radius
06 = 6mm 05 = 0.5mm
08 = 8mm 06 = 0.6mm
10 = 10mm
12 = 12mm
16 = 16mm
The Approximate
Cutting Length
Cutting Diameter 8 = 8mm
06 = 6mm 10 = 10mm
