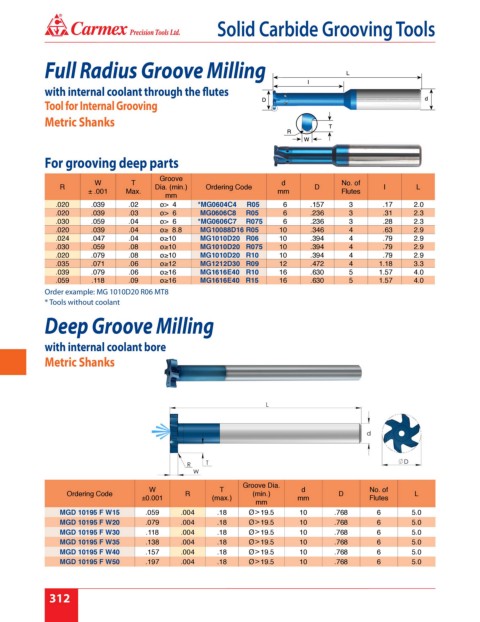

Page 318 - Carmex - Inch Catalog 2018-19 Rev. B

®
Solid Carbide Grooving Tools

Full Radius Groove Milling

with internal coolant through the flutes

Tool for Internal Grooving
Metric Shanks

For grooving deep parts

Groove
W T d No. of
R Dia. (min.) Ordering Code D I L
± .001 Max. mm Flutes
mm
.020 .039 .02 ø> 4 *MG0604C4 R05 6 .157 3 .17 2.0
.020 .039 .03 ø> 6 MG0606C8 R05 6 .236 3 .31 2.3
.030 .059 .04 ø> 6 *MG0606C7 R075 6 .236 3 .28 2.3
.020 .039 .04 ø≥ 8.8 MG10088D16 R05 10 .346 4 .63 2.9
.024 .047 .04 ø≥10 MG1010D20 R06 10 .394 4 .79 2.9
.030 .059 .08 ø≥10 MG1010D20 R075 10 .394 4 .79 2.9
.020 .079 .08 ø≥10 MG1010D20 R10 10 .394 4 .79 2.9
.035 .071 .06 ø≥12 MG1212D30 R09 12 .472 4 1.18 3.3
.039 .079 .06 ø≥16 MG1616E40 R10 16 .630 5 1.57 4.0
.059 .118 .09 ø≥16 MG1616E40 R15 16 .630 5 1.57 4.0
Order example: MG 1010D20 R06 MT8
* Tools without coolant

Deep Groove Milling

with internal coolant bore
Metric Shanks

Groove Dia.
W T d No. of
Ordering Code R (min.) D L
±0.001 (max.) mm Flutes
mm
MGD 10195 F W15 .059 .004 .18 Ø > 19.5 10 .768 6 5.0
MGD 10195 F W20 .079 .004 .18 Ø > 19.5 10 .768 6 5.0
MGD 10195 F W30 .118 .004 .18 Ø > 19.5 10 .768 6 5.0
MGD 10195 F W35 .138 .004 .18 Ø > 19.5 10 .768 6 5.0
MGD 10195 F W40 .157 .004 .18 Ø > 19.5 10 .768 6 5.0
MGD 10195 F W50 .197 .004 .18 Ø > 19.5 10 .768 6 5.0

8 312
