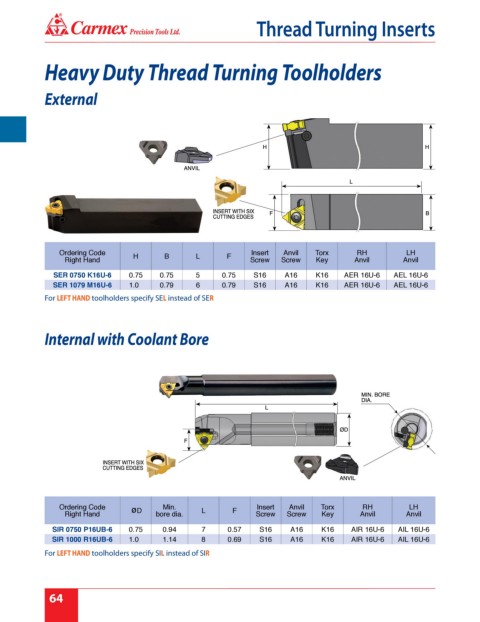

Page 70 - Carmex - Inch Catalog 2018-19 Rev. B

®
Thread Turning Inserts

Heavy Duty Thread Turning Toolholders

External

Ordering Code Insert Anvil Torx RH LH
Right Hand H B L F Screw Screw Key Anvil Anvil

SER 0750 K16U-6 0.75 0.75 5 0.75 S16 A16 K16 AER 16U-6 AEL 16U-6
SER 1079 M16U-6 1.0 0.79 6 0.79 S16 A16 K16 AER 16U-6 AEL 16U-6
For LEFT HAND toolholders specify SEL instead of SER

Internal with Coolant Bore

Ordering Code Min. Insert Anvil Torx RH LH
Right Hand D bore dia. L F Screw Screw Key Anvil Anvil
SIR 0750 P16UB-6 0.75 0.94 7 0.57 S16 A16 K16 AIR 16U-6 AIL 16U-6
SIR 1000 R16UB-6 1.0 1.14 8 0.69 S16 A16 K16 AIR 16U-6 AIL 16U-6
For LEFT HAND toolholders specify SIL instead of SIR
