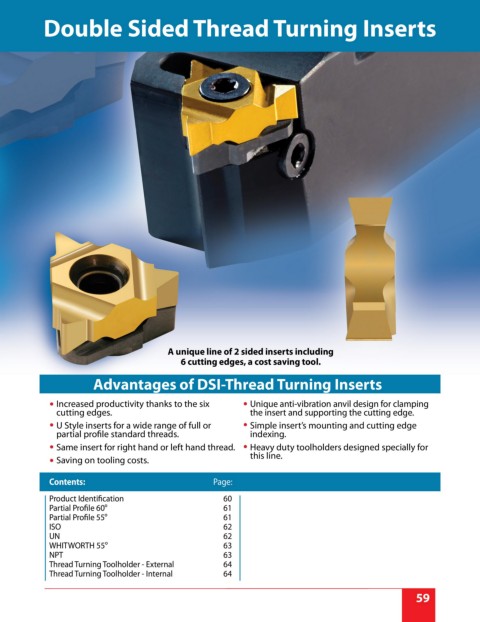

Double Sided Thread Turning Inserts
A unique line of 2 sided inserts including
6 cutting edges, a cost saving tool.
Advantages of DSI-Thread Turning Inserts
Increased productivity thanks to the six Unique anti-vibration anvil design for clamping
cutting edges. the insert and supporting the cutting edge.
U Style inserts for a wide range of full or Simple insert’s mounting and cutting edge
partial profile standard threads. indexing.
Same insert for right hand or left hand thread. Heavy duty toolholders designed specially for
Saving on tooling costs. this line.
Contents: Page:
Product Identification 60
Partial Profile 60 º 61
Partial Profile 55 º 61
ISO 62
UN 62
º
WHITWORTH 55 63
NPT 63
Thread Turning Toolholder - External 64
Thread Turning Toolholder - Internal 64
59
