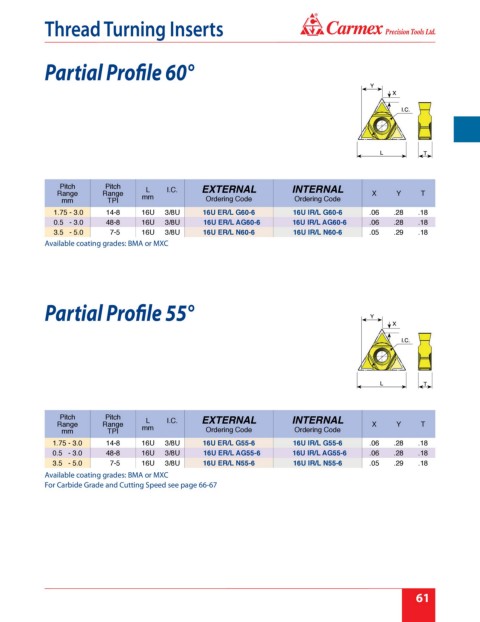

Thread Turning Inserts

Partial Profile 60°

Pitch Pitch L I.C. EXTERNAL INTERNAL
Range Range mm X Y T
mm TPI Ordering Code Ordering Code
1.75 - 3.0 14-8 16U 3/8U 16U ER/L G60-6 16U IR/L G60-6 .06 .28 .18
0.5 - 3.0 48-8 16U 3/8U 16U ER/L AG60-6 16U IR/L AG60-6 .06 .28 .18
3.5 - 5.0 7-5 16U 3/8U 16U ER/L N60-6 16U IR/L N60-6 .05 .29 .18
Available coating grades: BMA or MXC

Partial Profile 55°

Pitch Pitch L I.C. EXTERNAL INTERNAL
Range Range mm X Y T
mm TPI Ordering Code Ordering Code
1.75 - 3.0 14-8 16U 3/8U 16U ER/L G55-6 16U IR/L G55-6 .06 .28 .18
0.5 - 3.0 48-8 16U 3/8U 16U ER/L AG55-6 16U IR/L AG55-6 .06 .28 .18
3.5 - 5.0 7-5 16U 3/8U 16U ER/L N55-6 16U IR/L N55-6 .05 .29 .18
Available coating grades: BMA or MXC
For Carbide Grade and Cutting Speed see page 66-67
