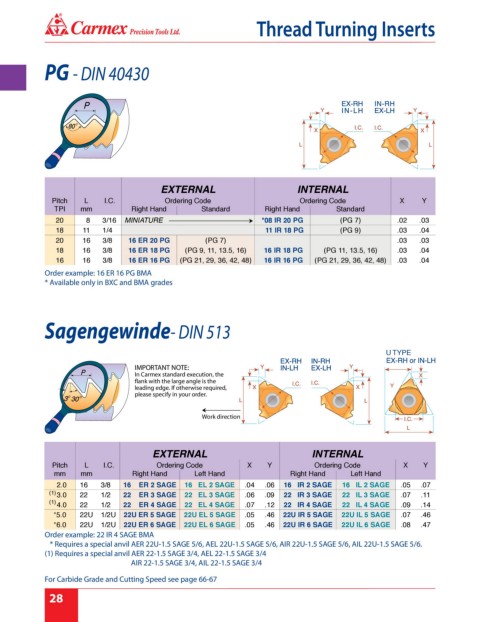

Page 34 - Carmex - Inch Catalog 2018-19 Rev. B

®
Thread Turning Inserts

PG - DIN 40430

EXTERNAL INTERNAL
Pitch L I.C. Ordering Code Ordering Code X Y
TPI mm Right Hand Standard Right Hand Standard
20 8 3/16 MINIATURE  *08 IR 20 PG (PG 7) .02 .03
18 11 1/4 11 IR 18 PG (PG 9) .03 .04
20 16 3/8 16 ER 20 PG (PG 7) .03 .03
18 16 3/8 16 ER 18 PG (PG 9, 11, 13.5, 16) 16 IR 18 PG (PG 11, 13.5, 16) .03 .04
16 16 3/8 16 ER 16 PG (PG 21, 29, 36, 42, 48) 16 IR 16 PG (PG 21, 29, 36, 42, 48) .03 .04
Order example: 16 ER 16 PG BMA
* Available only in BXC and BMA grades

Sagengewinde- DIN 513

U TYPE
IMPORTANT NOTE:
In Carmex standard execution, the
flank with the large angle is the
leading edge. If otherwise required,
please specify in your order.

Work direction


EXTERNAL INTERNAL
Pitch L I.C. Ordering Code X Y Ordering Code X Y
mm mm Right Hand Left Hand Right Hand Left Hand
2.0 16 3/8 16 ER 2 SAGE 16 EL 2 SAGE .04 .06 16 IR 2 SAGE 16 IL 2 SAGE .05 .07
(1)
3.0 22 1/2 22 ER 3 SAGE 22 EL 3 SAGE .06 .09 22 IR 3 SAGE 22 IL 3 SAGE .07 .11
(1)
4.0 22 1/2 22 ER 4 SAGE 22 EL 4 SAGE .07 .12 22 IR 4 SAGE 22 IL 4 SAGE .09 .14
*5.0 22U 1/2U 22U ER 5 SAGE 22U EL 5 SAGE .05 .46 22U IR 5 SAGE 22U IL 5 SAGE .07 .46
*6.0 22U 1/2U 22U ER 6 SAGE 22U EL 6 SAGE .05 .46 22U IR 6 SAGE 22U IL 6 SAGE .08 .47
Order example: 22 IR 4 SAGE BMA
* Requires a special anvil AER 22U-1.5 SAGE 5/6, AEL 22U-1.5 SAGE 5/6, AIR 22U-1.5 SAGE 5/6, AIL 22U-1.5 SAGE 5/6.
(1) Requires a special anvil AER 22-1.5 SAGE 3/4, AEL 22-1.5 SAGE 3/4
AIR 22-1.5 SAGE 3/4, AIL 22-1.5 SAGE 3/4

For Carbide Grade and Cutting Speed see page 66-67
