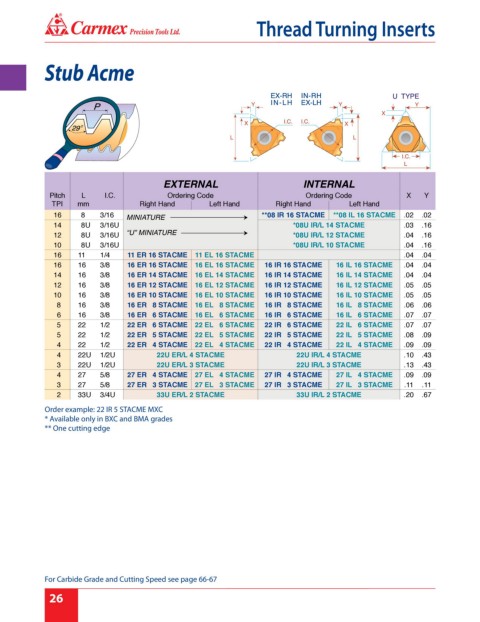

Page 32 - Carmex - Inch Catalog 2018-19 Rev. B

®
Thread Turning Inserts

Stub Acme

EXTERNAL INTERNAL
Pitch L I.C. Ordering Code Ordering Code X Y
TPI mm Right Hand Left Hand Right Hand Left Hand
16 8 3/16 MINIATURE  **08 IR 16 STACME **08 IL 16 STACME .02 .02
14 8U 3/16U *08U IR/L 14 STACME .03 .16
12 8U 3/16U “U” MINIATURE  *08U IR/L 12 STACME .04 .16
10 8U 3/16U *08U IR/L 10 STACME .04 .16
16 11 1/4 11 ER 16 STACME 11 EL 16 STACME .04 .04
16 16 3/8 16 ER 16 STACME 16 EL 16 STACME 16 IR 16 STACME 16 IL 16 STACME .04 .04
14 16 3/8 16 ER 14 STACME 16 EL 14 STACME 16 IR 14 STACME 16 IL 14 STACME .04 .04
12 16 3/8 16 ER 12 STACME 16 EL 12 STACME 16 IR 12 STACME 16 IL 12 STACME .05 .05
10 16 3/8 16 ER 10 STACME 16 EL 10 STACME 16 IR 10 STACME 16 IL 10 STACME .05 .05
8 16 3/8 16 ER 8 STACME 16 EL 8 STACME 16 IR 8 STACME 16 IL 8 STACME .06 .06
6 16 3/8 16 ER 6 STACME 16 EL 6 STACME 16 IR 6 STACME 16 IL 6 STACME .07 .07
5 22 1/2 22 ER 6 STACME 22 EL 6 STACME 22 IR 6 STACME 22 IL 6 STACME .07 .07
5 22 1/2 22 ER 5 STACME 22 EL 5 STACME 22 IR 5 STACME 22 IL 5 STACME .08 .09
4 22 1/2 22 ER 4 STACME 22 EL 4 STACME 22 IR 4 STACME 22 IL 4 STACME .09 .09
4 22U 1/2U 22U ER/L 4 STACME 22U IR/L 4 STACME .10 .43
3 22U 1/2U 22U ER/L 3 STACME 22U IR/L 3 STACME .13 .43
4 27 5/8 27 ER 4 STACME 27 EL 4 STACME 27 IR 4 STACME 27 IL 4 STACME .09 .09
3 27 5/8 27 ER 3 STACME 27 EL 3 STACME 27 IR 3 STACME 27 IL 3 STACME .11 .11
2 33U 3/4U 33U ER/L 2 STACME 33U IR/L 2 STACME .20 .67
Order example: 22 IR 5 STACME MXC
* Available only in BXC and BMA grades
** One cutting edge

For Carbide Grade and Cutting Speed see page 66-67
26
