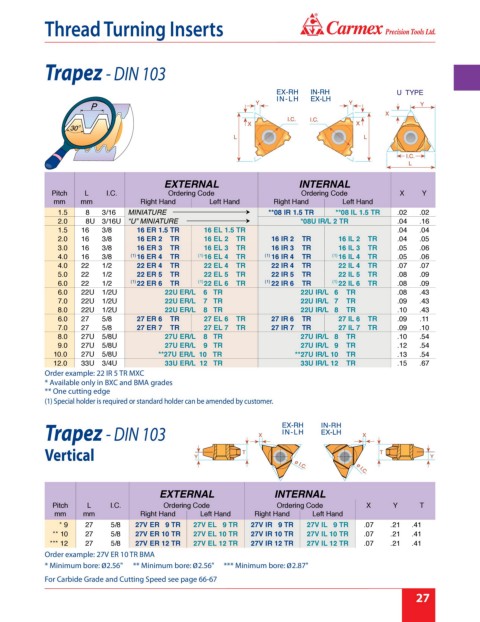

Page 33 - Carmex - Inch Catalog 2018-19 Rev. B

®
Thread Turning Inserts

Trapez - DIN 103

EXTERNAL INTERNAL
Pitch L I.C. Ordering Code Ordering Code X Y
mm mm Right Hand Left Hand Right Hand Left Hand
1.5 8 3/16 MINIATURE  **08 IR 1.5 TR **08 IL 1.5 TR .02 .02
2.0 8U 3/16U “U” MINIATURE  *08U IR/L 2 TR .04 .16
1.5 16 3/8 16 ER 1.5 TR 16 EL 1.5 TR .04 .04
2.0 16 3/8 16 ER 2 TR 16 EL 2 TR 16 IR 2 TR 16 IL 2 TR .04 .05
3.0 16 3/8 16 ER 3 TR 16 EL 3 TR 16 IR 3 TR 16 IL 3 TR .05 .06
4.0 16 3/8 (1) 16 ER 4 TR (1) 16 EL 4 TR (1) 16 IR 4 TR (1) 16 IL 4 TR .05 .06
4.0 22 1/2 22 ER 4 TR 22 EL 4 TR 22 IR 4 TR 22 IL 4 TR .07 .07
5.0 22 1/2 22 ER 5 TR 22 EL 5 TR 22 IR 5 TR 22 IL 5 TR .08 .09
6.0 22 1/2 (1) 22 ER 6 TR (1) 22 EL 6 TR (1) 22 IR 6 TR (1) 22 IL 6 TR .08 .09
6.0 22U 1/2U 22U ER/L 6 TR 22U IR/L 6 TR .08 .43
7.0 22U 1/2U 22U ER/L 7 TR 22U IR/L 7 TR .09 .43
8.0 22U 1/2U 22U ER/L 8 TR 22U IR/L 8 TR .10 .43
6.0 27 5/8 27 ER 6 TR 27 EL 6 TR 27 IR 6 TR 27 IL 6 TR .09 .11
7.0 27 5/8 27 ER 7 TR 27 EL 7 TR 27 IR 7 TR 27 IL 7 TR .09 .10
8.0 27U 5/8U 27U ER/L 8 TR 27U IR/L 8 TR .10 .54
9.0 27U 5/8U 27U ER/L 9 TR 27U IR/L 9 TR .12 .54
10.0 27U 5/8U **27U ER/L 10 TR **27U IR/L 10 TR .13 .54
12.0 33U 3/4U 33U ER/L 12 TR 33U IR/L 12 TR .15 .67
Order example: 22 IR 5 TR MXC
* Available only in BXC and BMA grades
** One cutting edge
(1) Special holder is required or standard holder can be amended by customer.

Trapez - DIN 103

Vertical

EXTERNAL INTERNAL
Pitch L I.C. Ordering Code Ordering Code X Y T
mm mm Right Hand Left Hand Right Hand Left Hand
* 9 27 5/8 27V ER 9 TR 27V EL 9 TR 27V IR 9 TR 27V IL 9 TR .07 .21 .41
** 10 27 5/8 27V ER 10 TR 27V EL 10 TR 27V IR 10 TR 27V IL 10 TR .07 .21 .41
*** 12 27 5/8 27V ER 12 TR 27V EL 12 TR 27V IR 12 TR 27V IL 12 TR .07 .21 .41
Order example: 27V ER 10 TR BMA



* Minimum bore: 2.56" ** Minimum bore: 2.56" *** Minimum bore: 2.87"
For Carbide Grade and Cutting Speed see page 66-67
