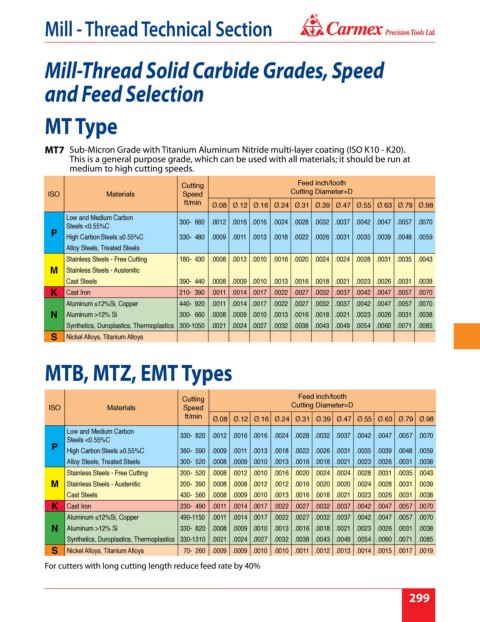

Mill - Thread Technical Section

Mill-Thread Solid Carbide Grades, Speed

and Feed Selection

MT Type

MT7 Sub-Micron Grade with Titanium Aluminum Nitride multi-layer coating (ISO K10 - K20).
This is a general purpose grade, which can be used with all materials; it should be run at
medium to high cutting speeds.

Cutting Feed inch/tooth
ISO Materials Speed Cutting Diameter=D
ft/min
Ø.08 Ø.12 Ø.16 Ø.24 Ø.31 Ø.39 Ø.47 Ø.55 Ø.63 Ø.79 Ø.98
Low and Medium Carbon 300- 660 .0012 .0016 .0016 .0024 .0028 .0032 .0037 .0042 .0047 .0057 .0070
Steels <0.55%C
P
High Carbon Steels ≥0.55%C 330- 480 .0009 .0011 .0013 .0018 .0022 .0026 .0031 .0035 .0039 .0048 .0059
Alloy Steels, Treated Steels
Stainless Steels - Free Cutting 180- 430 .0008 .0012 .0010 .0016 .0020 .0024 .0024 .0028 .0031 .0035 .0043
M Stainless Steels - Austenitic
Cast Steels 390- 440 .0008 .0009 .0010 .0013 .0016 .0018 .0021 .0023 .0026 .0031 .0038
K Cast Iron 210- 390 .0011 .0014 .0017 .0022 .0027 .0032 .0037 .0042 .0047 .0057 .0070
Aluminum ≤12%Si, Copper 440- 920 .0011 .0014 .0017 .0022 .0027 .0032 .0037 .0042 .0047 .0057 .0070
N Aluminum >12% Si 300- 660 .0008 .0009 .0010 .0013 .0016 .0018 .0021 .0023 .0026 .0031 .0038
Synthetics, Duroplastics, Thermoplastics 300-1050 .0021 .0024 .0027 .0032 .0038 .0043 .0049 .0054 .0060 .0071 .0085
S Nickel Alloys, Titanium Alloys

MTB, MTZ, EMT Types

Cutting Feed inch/tooth
ISO Materials Speed Cutting Diameter=D
ft/min Ø.08 Ø.12 Ø.16 Ø.24 Ø.31 Ø.39 Ø.47 Ø.55 Ø.63 Ø.79 Ø.98
Low and Medium Carbon 330- 820 .0012 .0016 .0016 .0024 .0028 .0032 .0037 .0042 .0047 .0057 .0070
Steels <0.55%C
P
High Carbon Steels ≥0.55%C 360- 590 .0009 .0011 .0013 .0018 .0022 .0026 .0031 .0035 .0039 .0048 .0059
Alloy Steels, Treated Steels 300- 520 .0008 .0009 .0010 .0013 .0016 .0018 .0021 .0023 .0026 .0031 .0038
Stainless Steels - Free Cutting 200- 520 .0008 .0012 .0010 .0016 .0020 .0024 .0024 .0028 .0031 .0035 .0043
M Stainless Steels - Austenitic 200- 390 .0008 .0008 .0012 .0012 .0016 .0020 .0020 .0024 .0028 .0031 .0039
Cast Steels 430- 560 .0008 .0009 .0010 .0013 .0016 .0018 .0021 .0023 .0026 .0031 .0038
K Cast Iron 230- 490 .0011 .0014 .0017 .0022 .0027 .0032 .0037 .0042 .0047 .0057 .0070
Aluminum ≤12%Si, Copper 490-1150 .0011 .0014 .0017 .0022 .0027 .0032 .0037 .0042 .0047 .0057 .0070
N Aluminum >12% Si 330- 820 .0008 .0009 .0010 .0013 .0016 .0018 .0021 .0023 .0026 .0031 .0038
Synthetics, Duroplastics, Thermoplastics 330-1310 .0021 .0024 .0027 .0032 .0038 .0043 .0049 .0054 .0060 .0071 .0085
S Nickel Alloys, Titanium Alloys 70- 260 .0009 .0009 .0010 .0010 .0011 .0012 .0013 .0014 .0015 .0017 .0019

For cutters with long cutting length reduce feed rate by 40%
