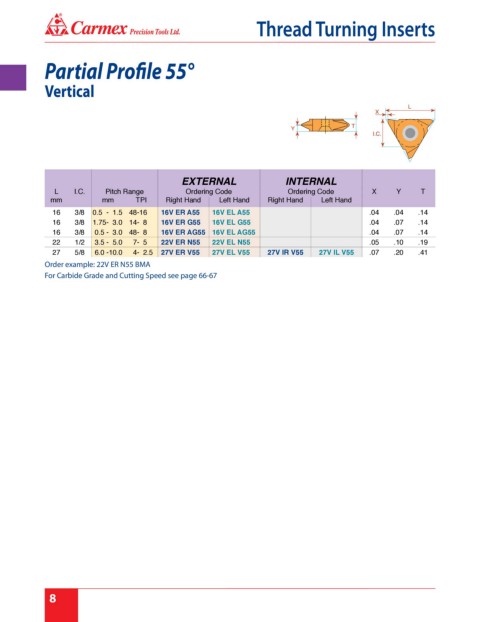

Page 14 - Carmex - Inch Catalog 2018-19 Rev. B

®
Thread Turning Inserts

Partial Profile 55°

Vertical

EXTERNAL INTERNAL
L I.C. Pitch Range Ordering Code Ordering Code X Y T
mm mm TPI Right Hand Left Hand Right Hand Left Hand
16 3/8 0.5 - 1.5 48-16 16V ER A55 16V EL A55 .04 .04 .14
16 3/8 1.75- 3.0 14- 8 16V ER G55 16V EL G55 .04 .07 .14
16 3/8 0.5 - 3.0 48- 8 16V ER AG55 16V EL AG55 .04 .07 .14
22 1/2 3.5 - 5.0 7- 5 22V ER N55 22V EL N55 .05 .10 .19
27 5/8 6.0 -10.0 4- 2.5 27V ER V55 27V EL V55 27V IR V55 27V IL V55 .07 .20 .41
Order example: 22V ER N55 BMA
For Carbide Grade and Cutting Speed see page 66-67
