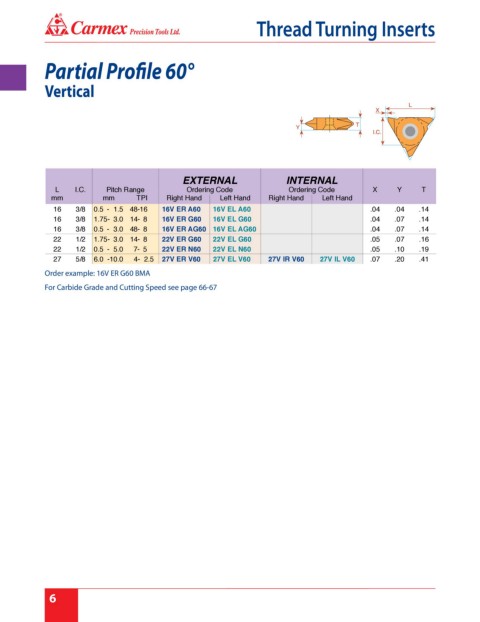

Page 12 - Carmex - Inch Catalog 2018-19 Rev. B

®
Thread Turning Inserts

Partial Profile 60°

Vertical

EXTERNAL INTERNAL
L I.C. Pitch Range Ordering Code Ordering Code X Y T
mm mm TPI Right Hand Left Hand Right Hand Left Hand
16 3/8 0.5 - 1.5 48-16 16V ER A60 16V EL A60 .04 .04 .14
16 3/8 1.75- 3.0 14- 8 16V ER G60 16V EL G60 .04 .07 .14
16 3/8 0.5 - 3.0 48- 8 16V ER AG60 16V EL AG60 .04 .07 .14
22 1/2 1.75- 3.0 14- 8 22V ER G60 22V EL G60 .05 .07 .16
22 1/2 0.5 - 5.0 7- 5 22V ER N60 22V EL N60 .05 .10 .19
27 5/8 6.0 -10.0 4- 2.5 27V ER V60 27V EL V60 27V IR V60 27V IL V60 .07 .20 .41
Order example: 16V ER G60 BMA
For Carbide Grade and Cutting Speed see page 66-67
