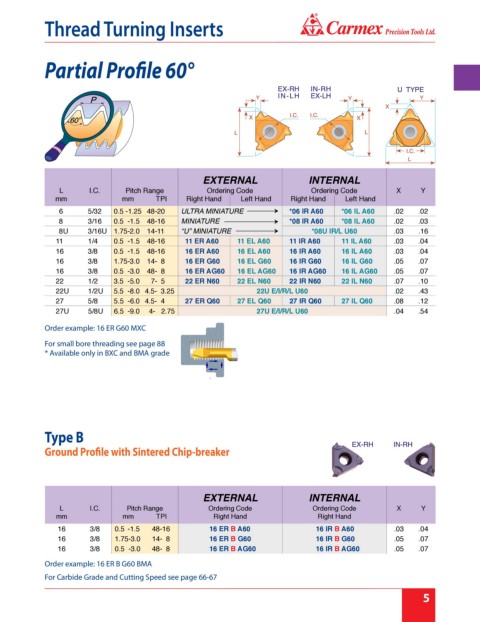

Page 11 - Carmex - Inch Catalog 2018-19 Rev. B

®
Thread Turning Inserts

Partial Profile 60°

EXTERNAL INTERNAL
L I.C. Pitch Range Ordering Code Ordering Code X Y
mm mm TPI Right Hand Left Hand Right Hand Left Hand
6 5/32 0.5 -1.25 48-20 ULTRA MINIATURE  *06 IR A60 *06 IL A60 .02 .02
8 3/16 0.5 -1.5 48-16 MINIATURE  *08 IR A60 *08 IL A60 .02 .03
8U 3/16U 1.75-2.0 14-11 “U” MINIATURE  *08U IR/L U60 .03 .16
11 1/4 0.5 -1.5 48-16 11 ER A60 11 EL A60 11 IR A60 11 IL A60 .03 .04
16 3/8 0.5 -1.5 48-16 16 ER A60 16 EL A60 16 IR A60 16 IL A60 .03 .04
16 3/8 1.75-3.0 14- 8 16 ER G60 16 EL G60 16 IR G60 16 IL G60 .05 .07
16 3/8 0.5 -3.0 48- 8 16 ER AG60 16 EL AG60 16 IR AG60 16 IL AG60 .05 .07
22 1/2 3.5 -5.0 7- 5 22 ER N60 22 EL N60 22 IR N60 22 IL N60 .07 .10
22U 1/2U 5.5 -8.0 4.5- 3.25 22U E/I/R/L U60 .02 .43
27 5/8 5.5 -6.0 4.5- 4 27 ER Q60 27 EL Q60 27 IR Q60 27 IL Q60 .08 .12
27U 5/8U 6.5 -9.0 4- 2.75 27U E/I/R/L U60 .04 .54

Order example: 16 ER G60 MXC
For small bore threading see page 88
* Available only in BXC and BMA grade

Type B

Ground Profile with Sintered Chip-breaker

EXTERNAL INTERNAL
L I.C. Pitch Range Ordering Code Ordering Code X Y
mm mm TPI Right Hand Right Hand
16 3/8 0.5 -1.5 48-16 16 ER B A60 16 IR B A60 .03 .04
16 3/8 1.75-3.0 14- 8 16 ER B G60 16 IR B G60 .05 .07
16 3/8 0.5 -3.0 48- 8 16 ER B AG60 16 IR B AG60 .05 .07
Order example: 16 ER B G60 BMA
For Carbide Grade and Cutting Speed see page 66-67
