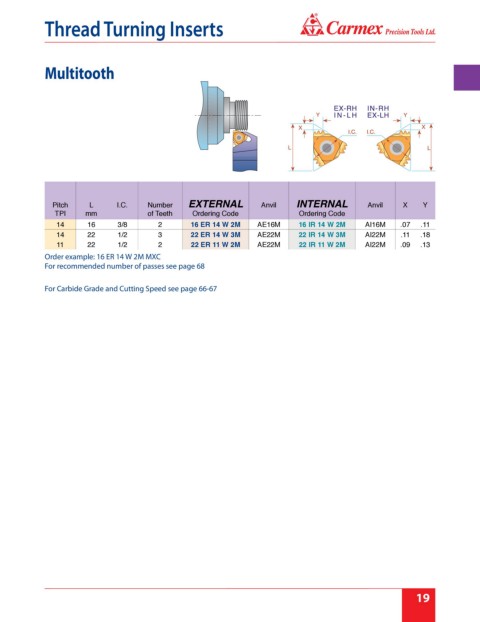

Thread Turning Inserts
Multitooth
Pitch L I.C. Number EXTERNAL Anvil INTERNAL Anvil X Y
TPI mm of Teeth Ordering Code Ordering Code
14 16 3/8 2 16 ER 14 W 2M AE16M 16 IR 14 W 2M AI16M .07 .11
14 22 1/2 3 22 ER 14 W 3M AE22M 22 IR 14 W 3M AI22M .11 .18
11 22 1/2 2 22 ER 11 W 2M AE22M 22 IR 11 W 2M AI22M .09 .13
Order example: 16 ER 14 W 2M MXC
For recommended number of passes see page 68
For Carbide Grade and Cutting Speed see page 66-67
