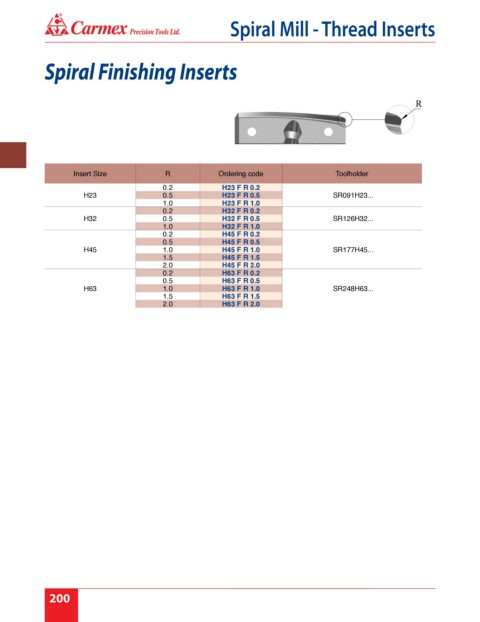

Page 206 - Carmex - Inch Catalog 2018-19 Rev. B

®
Spiral Mill - Thread Inserts

Spiral Finishing Inserts

Insert Size R Ordering code Toolholder

0.2 H23 F R 0.2
H23 0.5 H23 F R 0.5 SR091H23...
1.0 H23 F R 1.0
0.2 H32 F R 0.2
H32 0.5 H32 F R 0.5 SR126H32...
1.0 H32 F R 1.0
0.2 H45 F R 0.2
0.5 H45 F R 0.5
H45 1.0 H45 F R 1.0 SR177H45...
1.5 H45 F R 1.5
2.0 H45 F R 2.0
0.2 H63 F R 0.2
0.5 H63 F R 0.5
H63 1.0 H63 F R 1.0 SR248H63...
1.5 H63 F R 1.5
2.0 H63 F R 2.0

200
