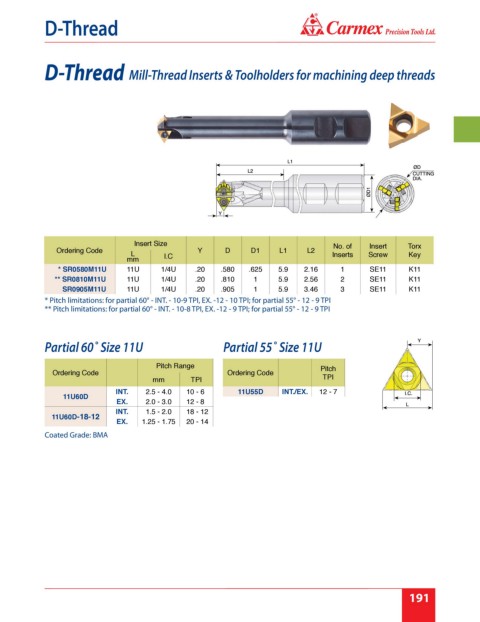

Page 197 - Carmex - Inch Catalog 2018-19 Rev. B

®
D-Thread

D-Thread Mill-Thread Inserts & Toolholders for machining deep threads

Insert Size No. of Insert Torx
Ordering Code Y D D1 L1 L2
L I.C Inserts Screw Key
mm
* SR0580M11U 11U 1/4U .20 .580 .625 5.9 2.16 1 SE11 K11
** SR0810M11U 11U 1/4U .20 .810 1 5.9 2.56 2 SE11 K11
SR0905M11U 11U 1/4U .20 .905 1 5.9 3.46 3 SE11 K11
* Pitch limitations: for partial 60° - INT. - 10-9 TPI, EX. -12 - 10 TPI; for partial 55° - 12 - 9 TPI
** Pitch limitations: for partial 60° - INT. - 10-8 TPI, EX. -12 - 9 TPI; for partial 55° - 12 - 9 TPI

Partial 60˚ Size 11U Partial 55˚ Size 11U

Pitch Range Pitch
Ordering Code Ordering Code
mm TPI TPI
INT. 2.5 - 4.0 10 - 6 11U55D INT./EX. 12 - 7
11U60D
EX. 2.0 - 3.0 12 - 8
INT. 1.5 - 2.0 18 - 12
11U60D-18-12
EX. 1.25 - 1.75 20 - 14
Coated Grade: BMA

191
