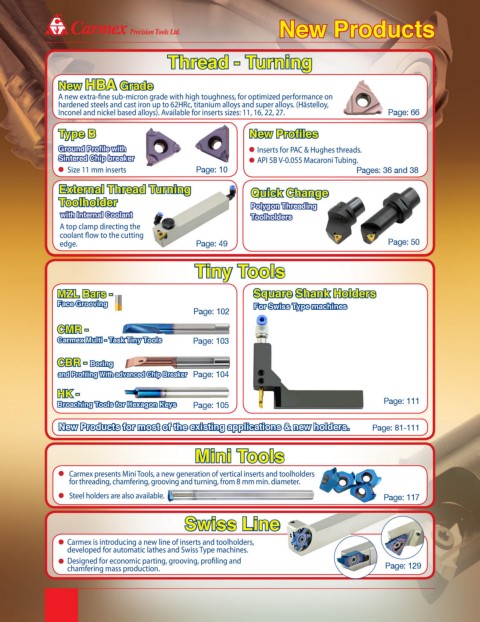

Page 4 - Carmex - Inch Catalog 2018-19 Rev. B

® ®
Thread Turning Inserts
New Products

Thread - Turning

New HBA Grade
A new extra-fine sub-micron grade with high toughness, for optimized performance on
hardened steels and cast iron up to 62HRc, titanium alloys and super alloys. (Hästelloy,
Inconel and nickel based alloys). Available for inserts sizes: 11, 16, 22, 27. Page: 66

Type B New Profiles
Ground Profile with Inserts for PAC & Hughes threads.
Sintered Chip breaker API 5B V-0.055 Macaroni Tubing.
Size 11 mm inserts Page: 10 Pages: 36 and 38

External Thread Turning Quick Change
Toolholder Polygon Threading
with Internal Coolant Toolholders
A top clamp directing the
coolant flow to the cutting
edge. Page: 49 Page: 50

Tiny Tools

MZL Bars - Square Shank Holders
Face Grooving For Swiss Type machines
Page: 102

CMR -
Carmex Multi - Task Tiny Tools Page: 103

CBR - Boring
and Profiling With advanced Chip Breaker Page: 104

HK -
Page: 111
Broaching Tools for Hexagon Keys Page: 105

New Products for most of the existing applications & new holders. Page: 81-111

Mini Tools

Carmex presents Mini Tools, a new generation of vertical inserts and toolholders
for threading, chamfering, grooving and turning, from 8 mm min. diameter.
Steel holders are also available. Page: 117

Swiss Line

Carmex is introducing a new line of inserts and toolholders,
developed for automatic lathes and Swiss Type machines.
Designed for economic parting, grooving, profiling and
chamfering mass production. Page: 129
