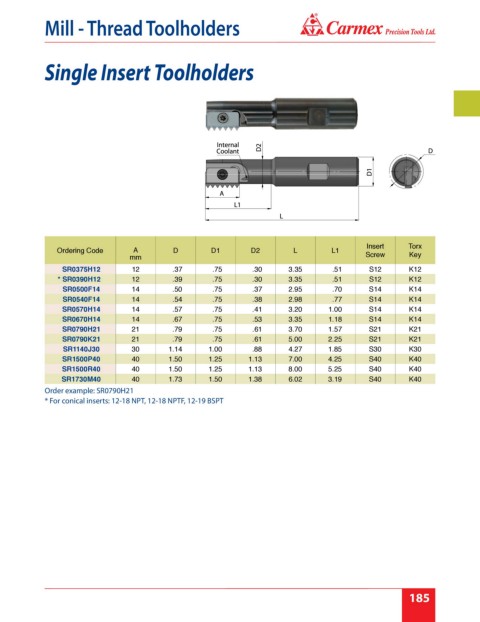

Page 191 - Carmex - Inch Catalog 2018-19 Rev. B
P. 191

®
            Mill - Thread Toolholders




            Single Insert Toolholders




























                                                                                               Insert    Torx
                Ordering Code      A         D         D1        D2         L         L1
                                  mm                                                          Screw      Key
                 SR0375H12         12        .37       .75       .30       3.35       .51      S12       K12
                * SR0390H12        12        .39       .75       .30       3.35       .51      S12       K12
                 SR0500F14         14        .50       .75       .37       2.95       .70      S14       K14
                 SR0540F14         14        .54       .75       .38       2.98       .77      S14       K14
                 SR0570H14         14        .57       .75       .41       3.20      1.00      S14       K14
                 SR0670H14         14        .67       .75       .53       3.35      1.18      S14       K14
                 SR0790H21         21        .79       .75       .61       3.70      1.57      S21       K21
                 SR0790K21         21        .79       .75       .61       5.00      2.25      S21       K21
                 SR1140J30         30       1.14      1.00       .88       4.27      1.85      S30       K30
                 SR1500P40         40       1.50      1.25      1.13       7.00      4.25      S40       K40
                 SR1500R40         40       1.50      1.25      1.13       8.00      5.25      S40       K40
                 SR1730M40         40       1.73      1.50      1.38       6.02      3.19      S40       K40
            Order example: SR0790H21
            * For conical inserts: 12-18 NPT, 12-18 NPTF, 12-19 BSPT
